Villa 147 м² in Savudrija, Croatia

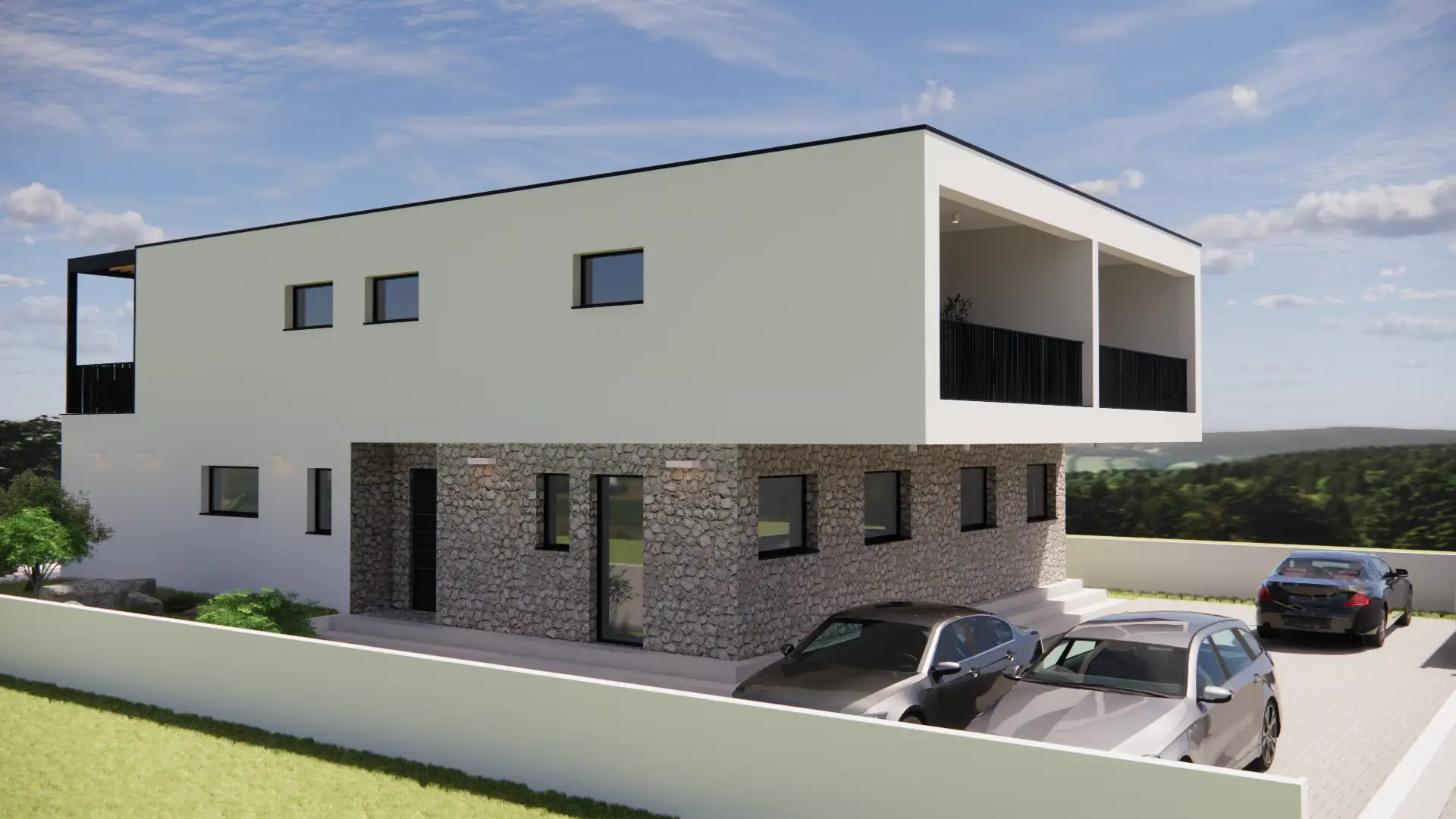

The main entrance is located on the north-west side of the first floor, access is through a covered entrance.

The first floor layout includes:
On the left side of the corridor - laundry, guest toilet, living room, dining room and kitchen.
On the right side there is a storage room and a bedroom with its own bathroom.

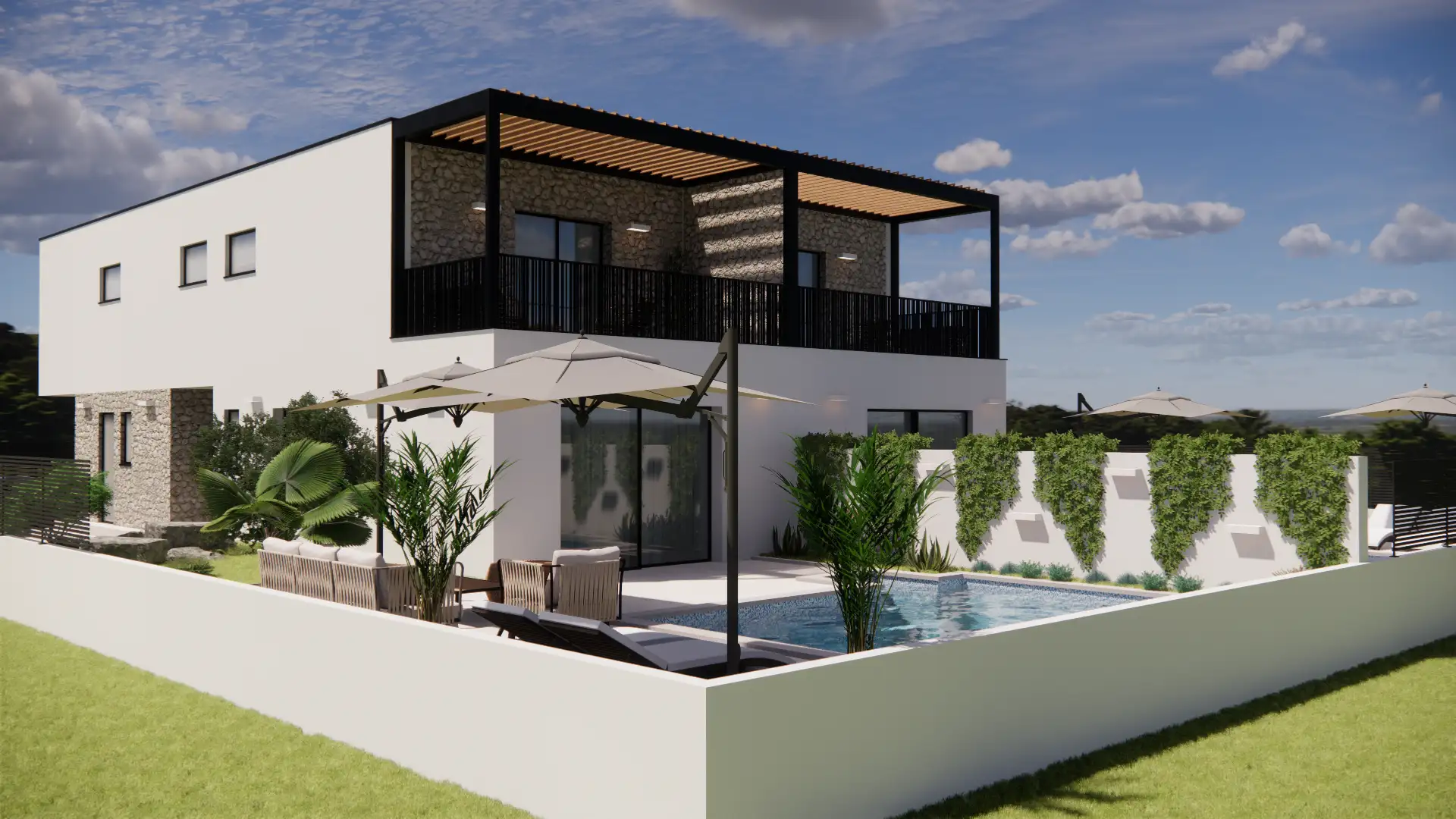

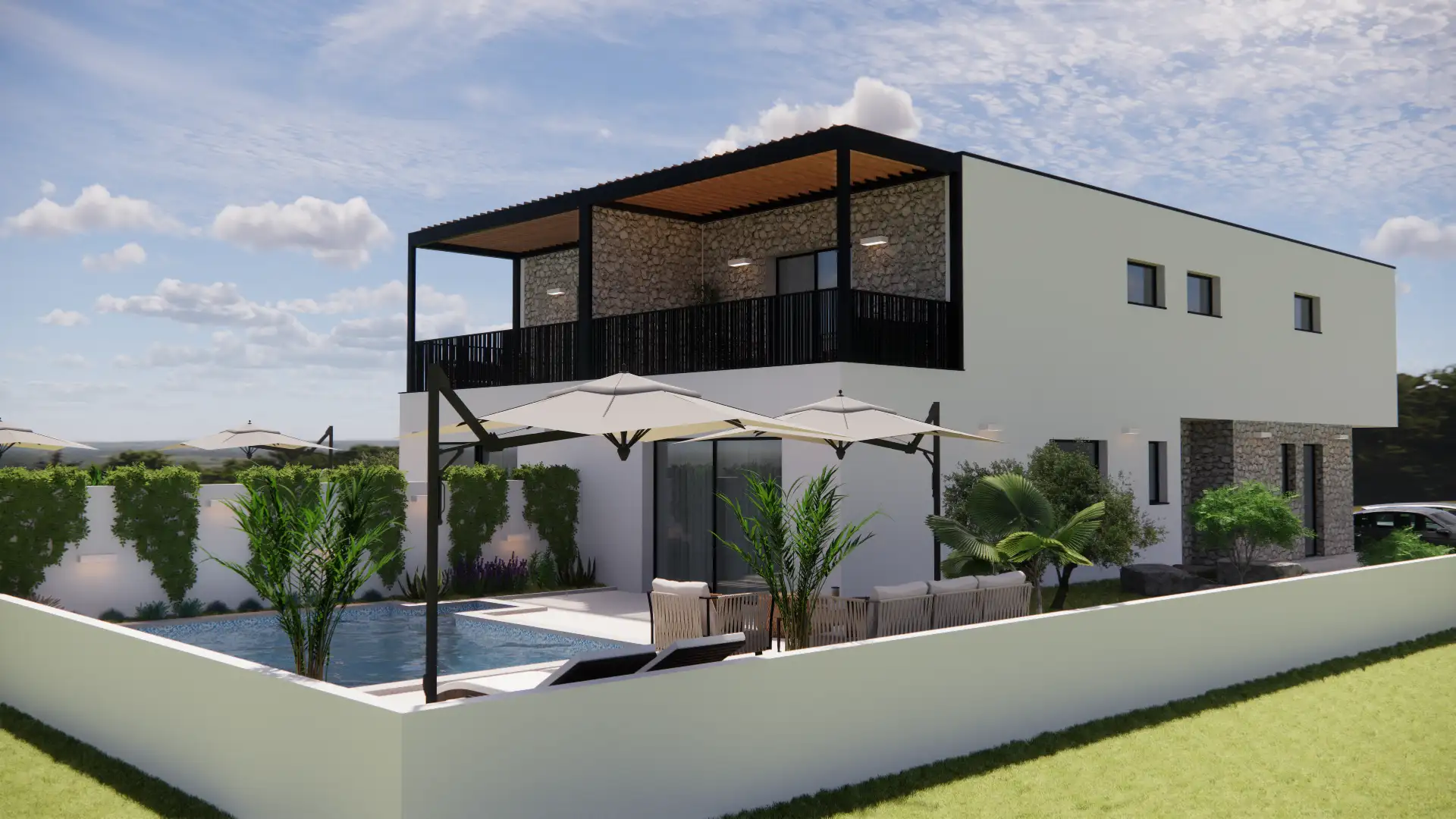

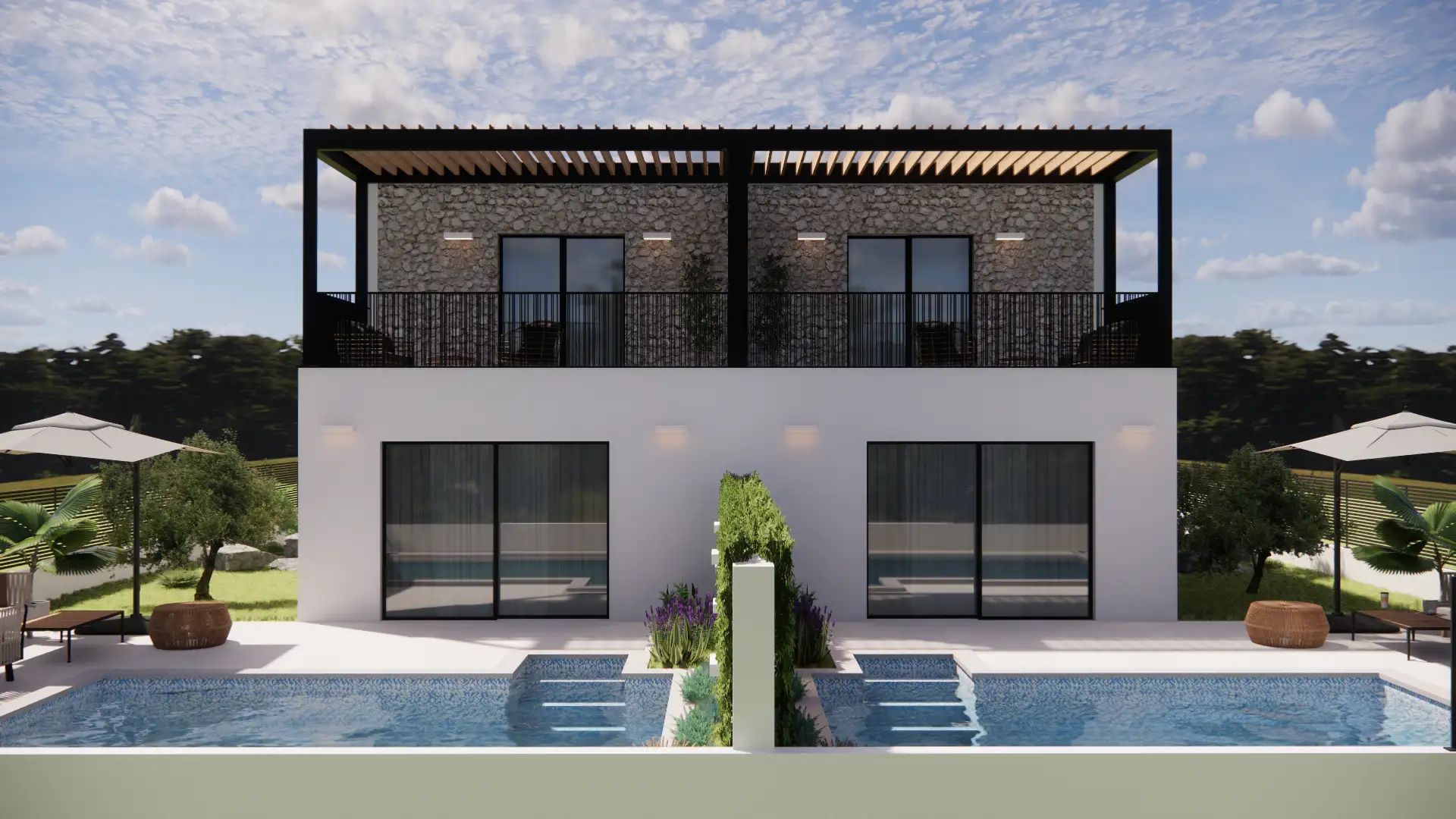

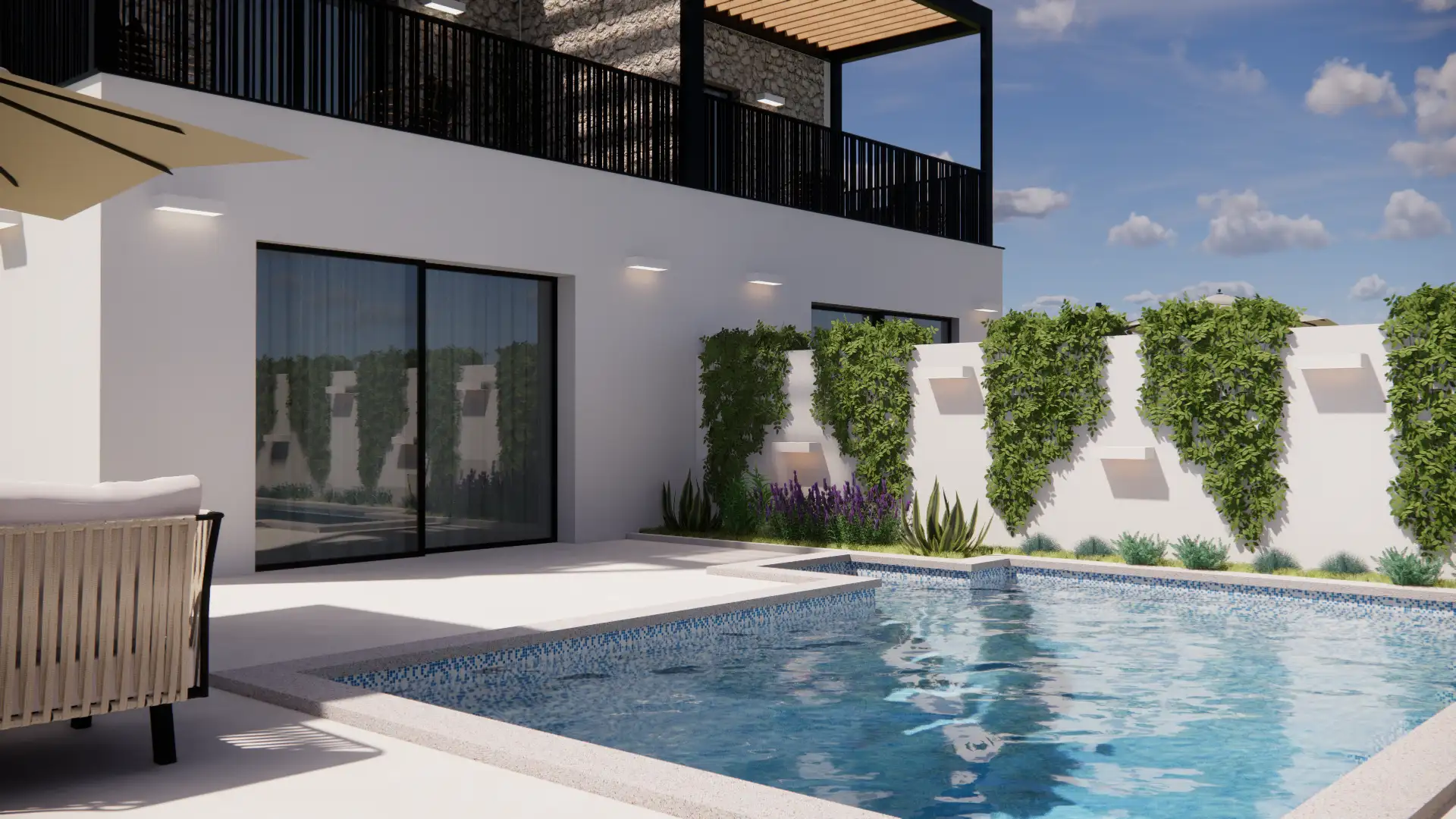

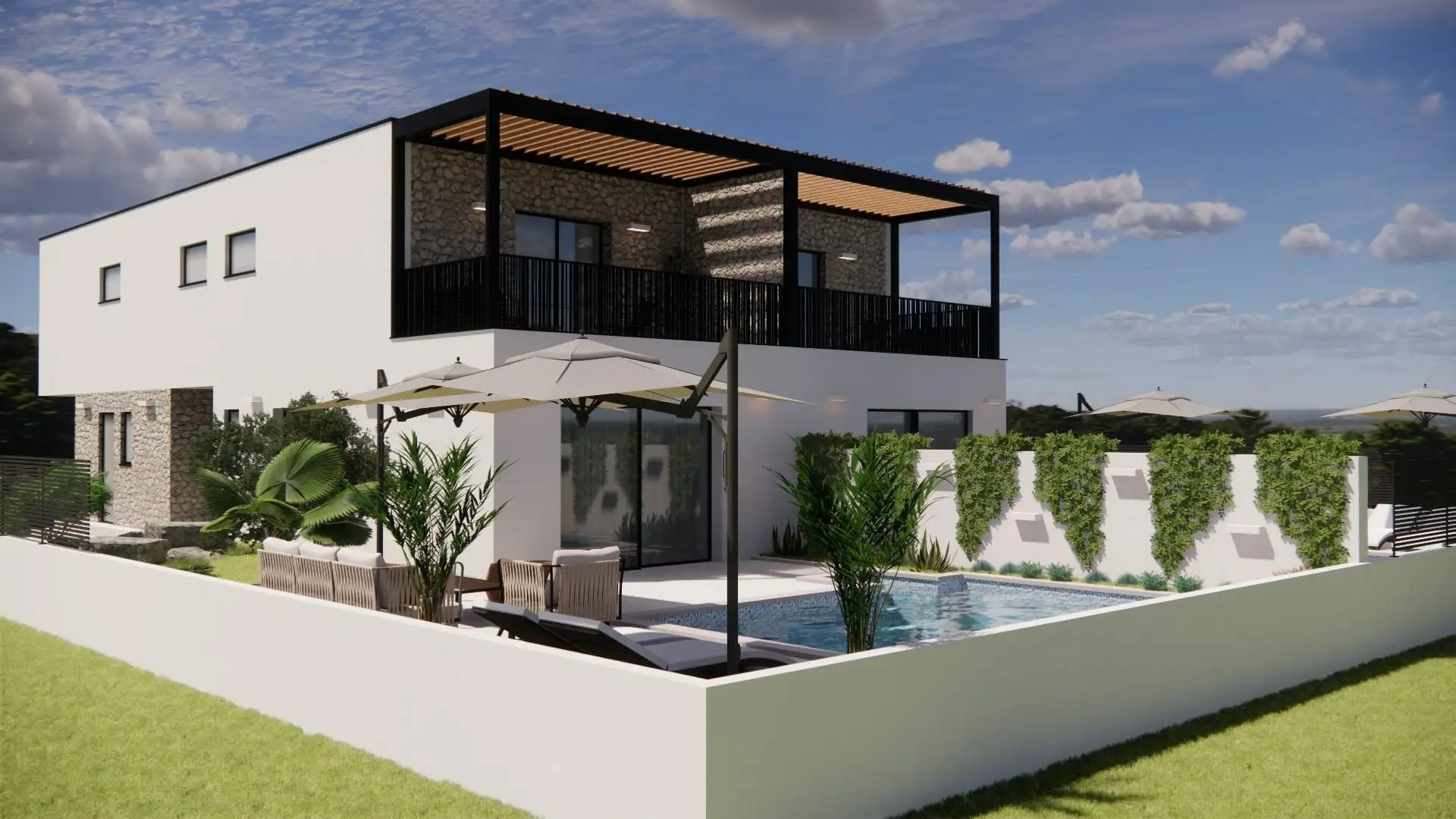

The living room overlooks the sun terrace and pool (24.90 m2).

There is also a separate entrance to the boiler room from the north-west side.

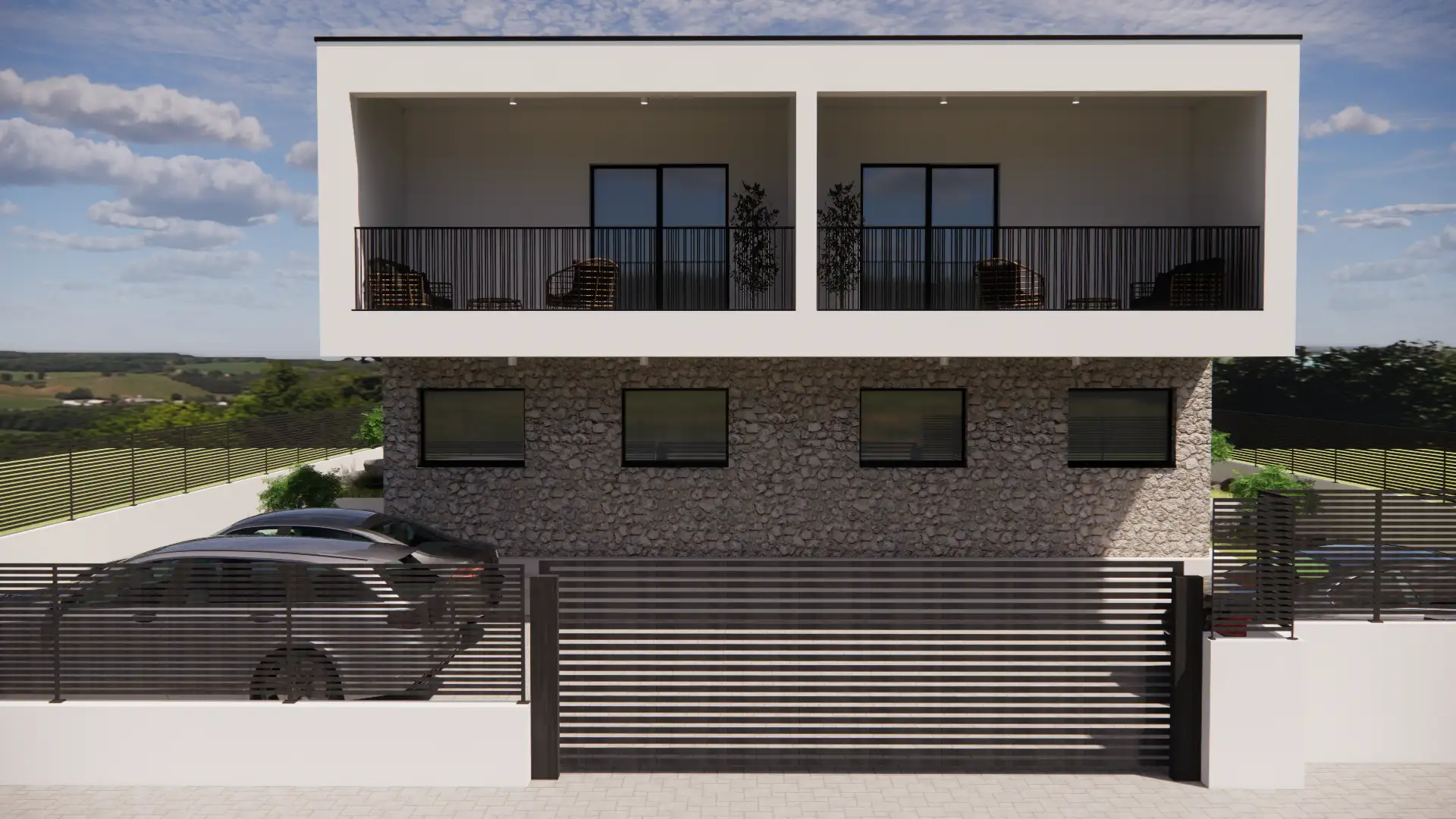

On the second floor there are two bedrooms, each with a separate bathroom. The bedroom on the northeast side has access to the terrace overlooking the pool, and the bedroom on the southwest side has a loggia facing the road.

Construction details include:
Loading walls of brick 25 cm thick, partitions of brick 10 cm thick.
Inter-storey and roof slabs with a thickness of 18 cm of reinforced concrete, with tape reinforced concrete foundations.
The staircase is made of reinforced concrete, at least 16 cm thick.
The pool and engine room are made of waterproof concrete 20 cm thick.

The floor design includes hydro and thermal insulation, polyethylene film, screed and final coating. The ceilings are insulated for sound and temperature insulation.
The roof has thermal insulation, PVC film and an inclined screed.

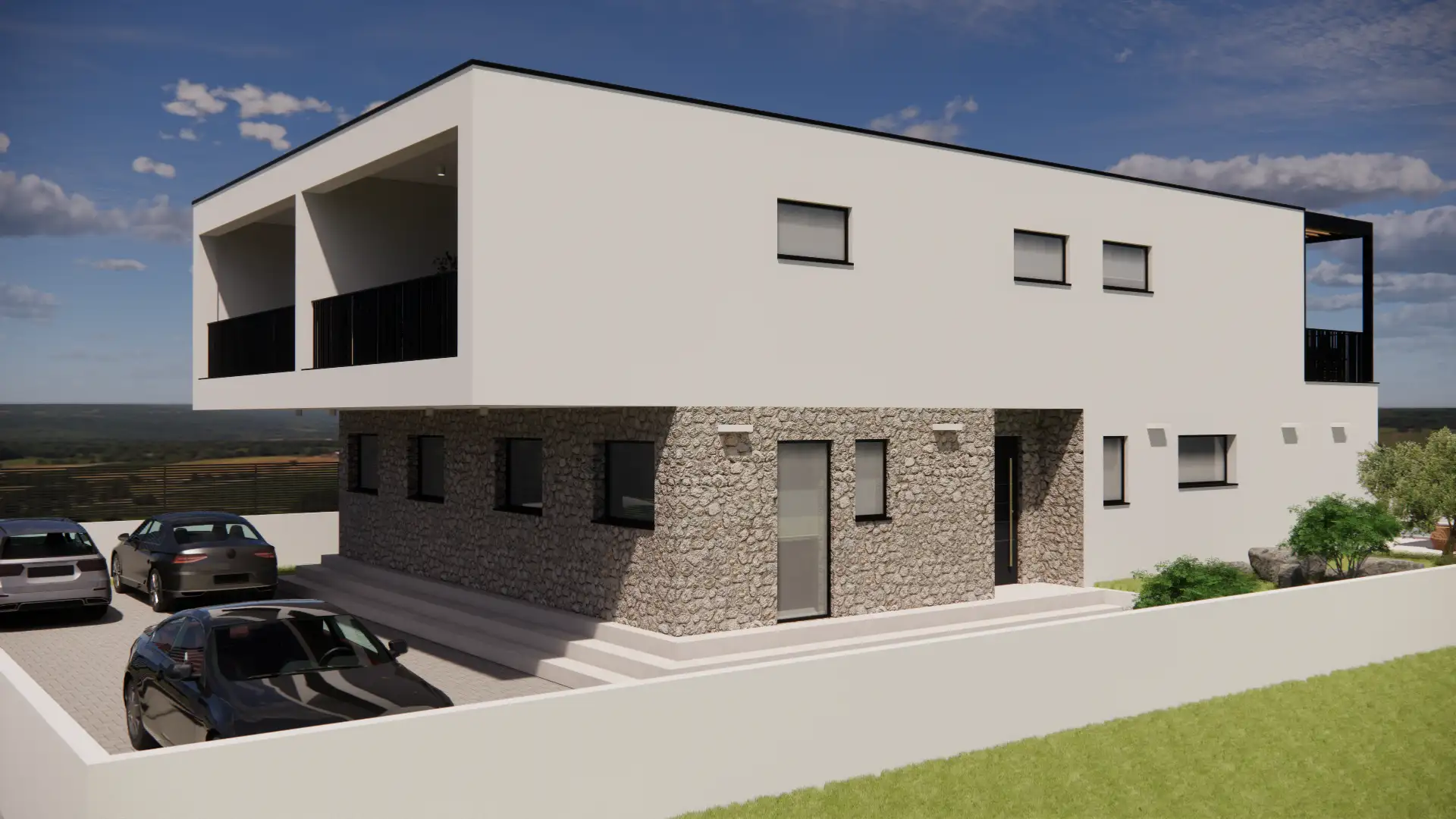

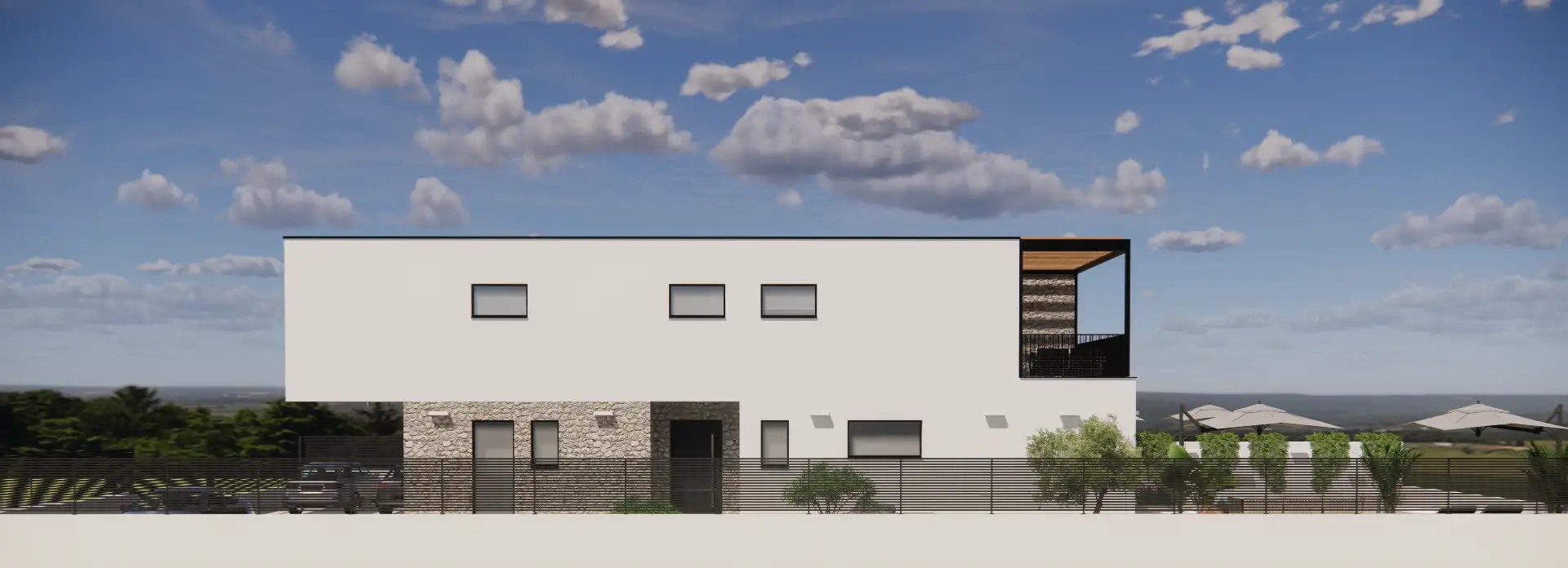

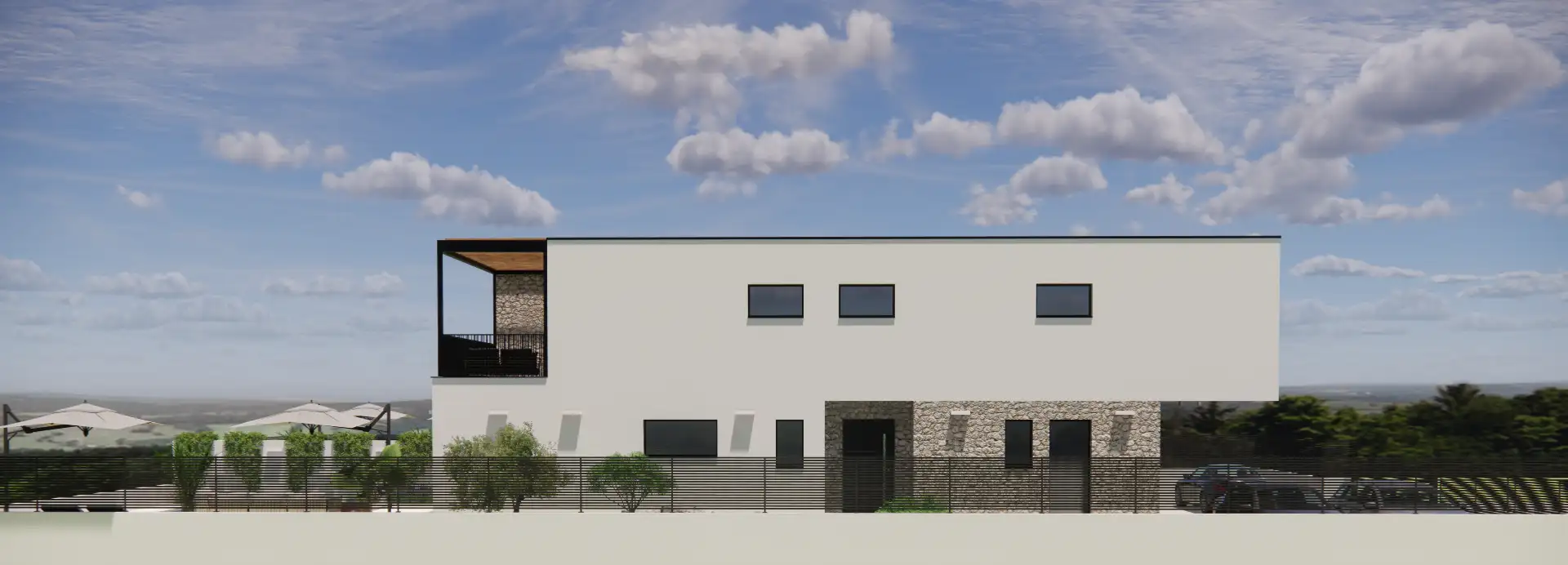

The facade is finished with 12 cm of thermal insulation and an acrylic layer, partially decorated with 8 cm of natural stone.
The terraces are decorated with ceramic tiles, hydro and thermal insulation.

PVC windows with roller shutters and reinforced swivel shutters.
Glass or metal fences.

Utility connections include water, sewerage, electricity and telecommunications.
Rainwater and pool drainage go into absorbing wells.
Heating and cooling are provided by a heat pump, fan coils and electric underfloor heating in bathrooms.
Hot water is supplied through central boilers.
Natural ventilation.

Power is 14.72 kW (2x7.36 kW), water supply capacity is 3.53 m3/h.
The chimney is a three-layer system with technical ceramics, insulation and a lightweight concrete case 7 meters high, with a condensate collector, Inspection openings, T-connection, end plate with cone, and anti-drip cap.
